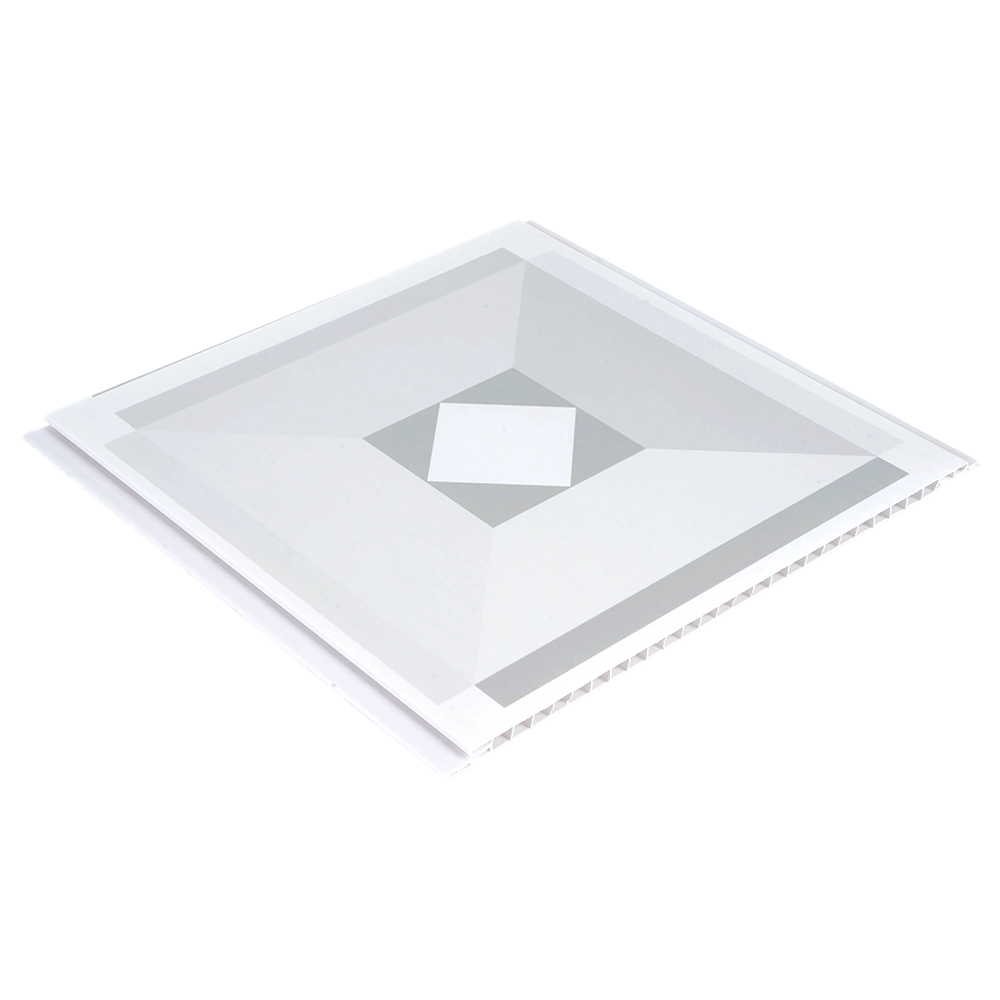

Hot Stamping
Process Principle: High-definition patterns from a pre-made transfer film are fully transferred onto the PVC substrate surface using a high-temperature, high-pressure process. This creates a strong bond between the ink layer and the substrate and, in some variations, simultaneously forms a thin protective layer.
| Thickness available | 5 / 6 / 8 mm | 7 / 7. 5 mm | 9 / 9. 5 / 10 mm |
| Width scope | 200 / 250 / 300 mm | 200 / 250 / 300 mm | 200 / 250 / 300 mm |
| Length |
2950 / 5800 / 5950 mm |
2950 / 5800 / 5950 mm |
2950 / 5800 / 5950 mm |
| Weight | 1.6-3.0 kg/sqm | 1.6-3.0 kg/sqm | 1.6-3.0 kg/sqm |
| Loading for 40'Hq | 7600-12800 sqm | 7600-12800 sqm | 7600-12800 sqm |
| MOQ | 1000 sqm | 1000 sqm | 1000 sqm |
| Comparison Dimension | Regular Printed Board | Thermal Transfer Board | Laminated Board |
| Market Positioning | Economy / Entry-level | Mid-range, cost-effective | High-end, premium quality |
| Appearance & Texture | Flat printing, plain texture, weak dimensionality | High-definition flat patterns, vibrant colors | 3D embossed texture, feels close to natural materials |
| Wear & Scratch Resistance | Weak; thin protective layer, easily scratched and faded | Medium; adhesion better than printed board, no high-strength wear layer | Strong; built-in wear-resistant protective layer, outstanding scratch and stain resistance |
|
Weather Resistance & Anti-Yellowing |
Average; prone to fading and yellowing under long-term light exposure | Good; aging resistance better than printed board | Excellent; strong UV resistance, resistant to discoloration over long-term use |
| Procurement Cost | Lowest | Medium | Highest |
| Production & Delivery Efficiency | Fastest; short lead time | Medium | Slower; more complex process |
Superior Color Performance: The transfer film offers high pattern precision with color saturation and fidelity far surpassing standard printing methods. It enables complex visual effects—such as gradients and high-definition stone or wood grain textures—delivering outstanding visual appeal.
Balanced Cost-Effectiveness: It offers superior adhesion, stain resistance, and aging resistance compared to standard printed boards. With only a modest increase in production costs, it serves as a mainstay product in the mid-range market, striking an ideal balance between aesthetics and budget.
High Product Consistency: Mass production of the transfer film is highly stable, ensuring excellent control over color consistency within batches—making it an ideal choice for standardized project procurement.
