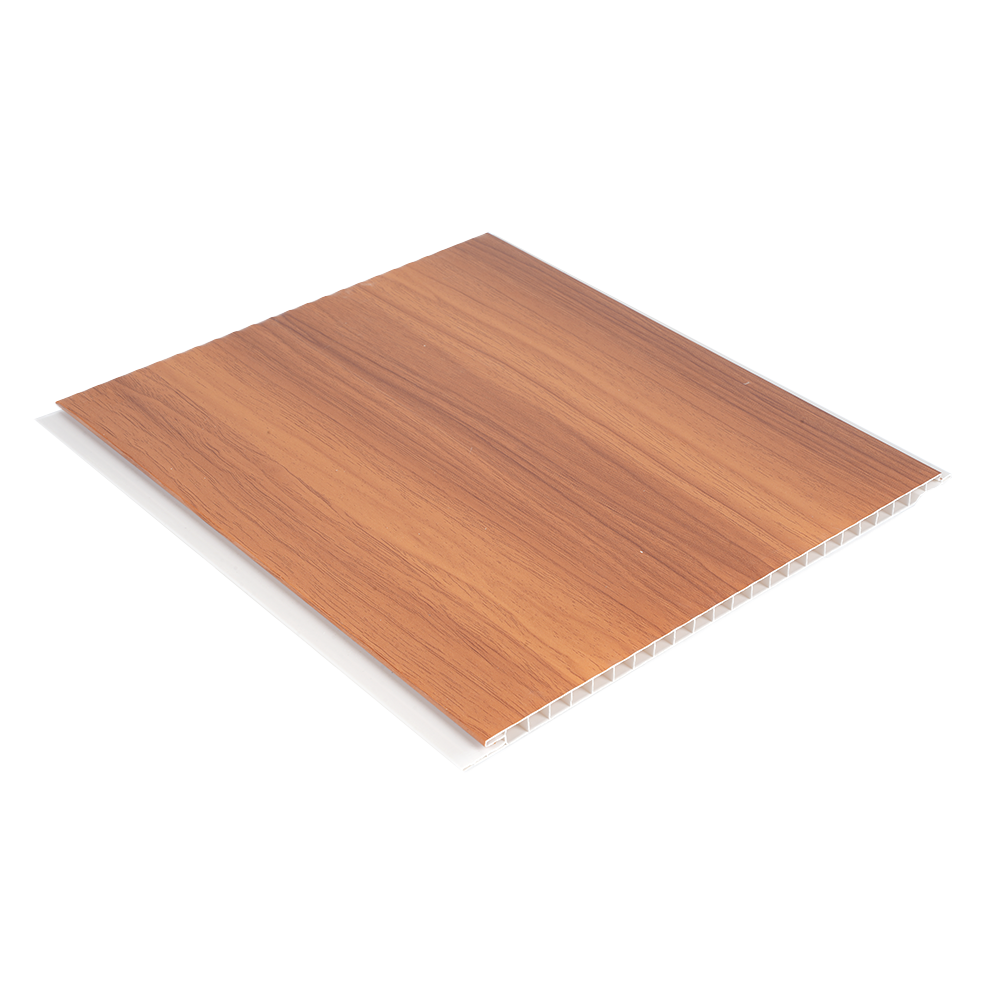

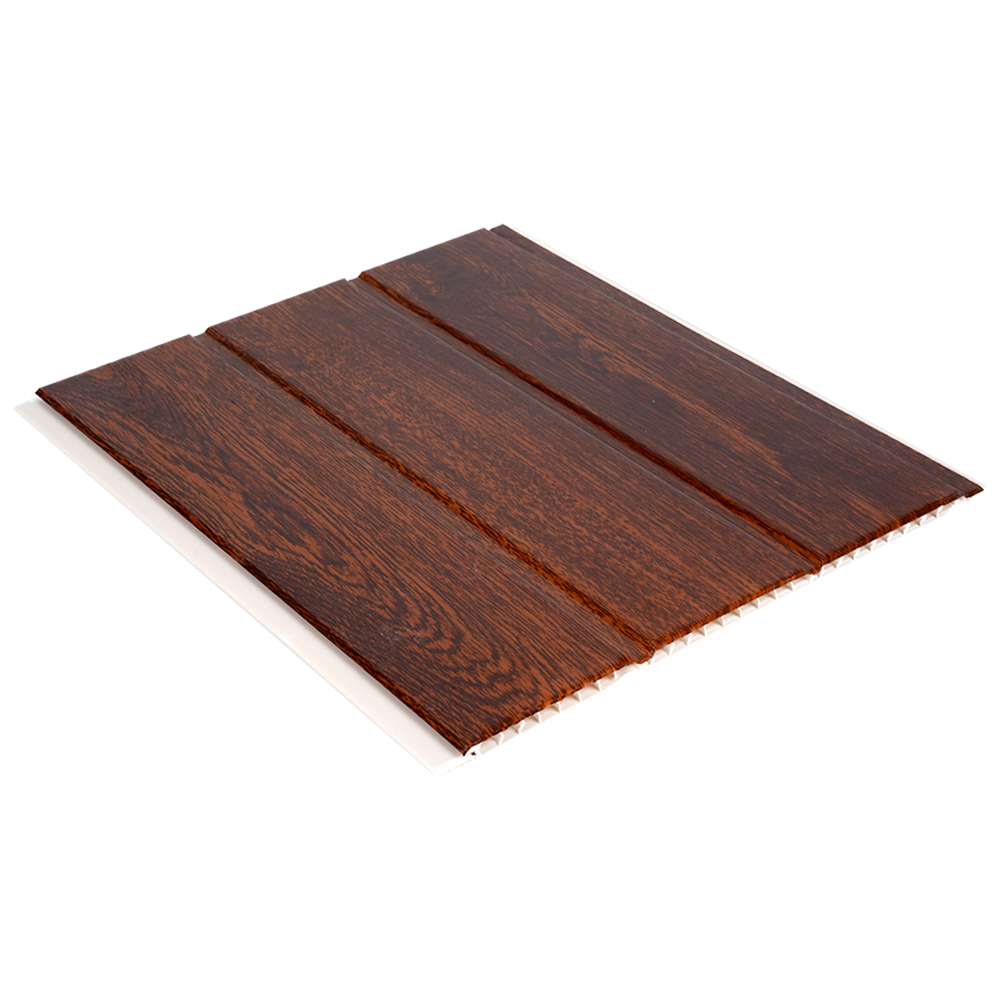

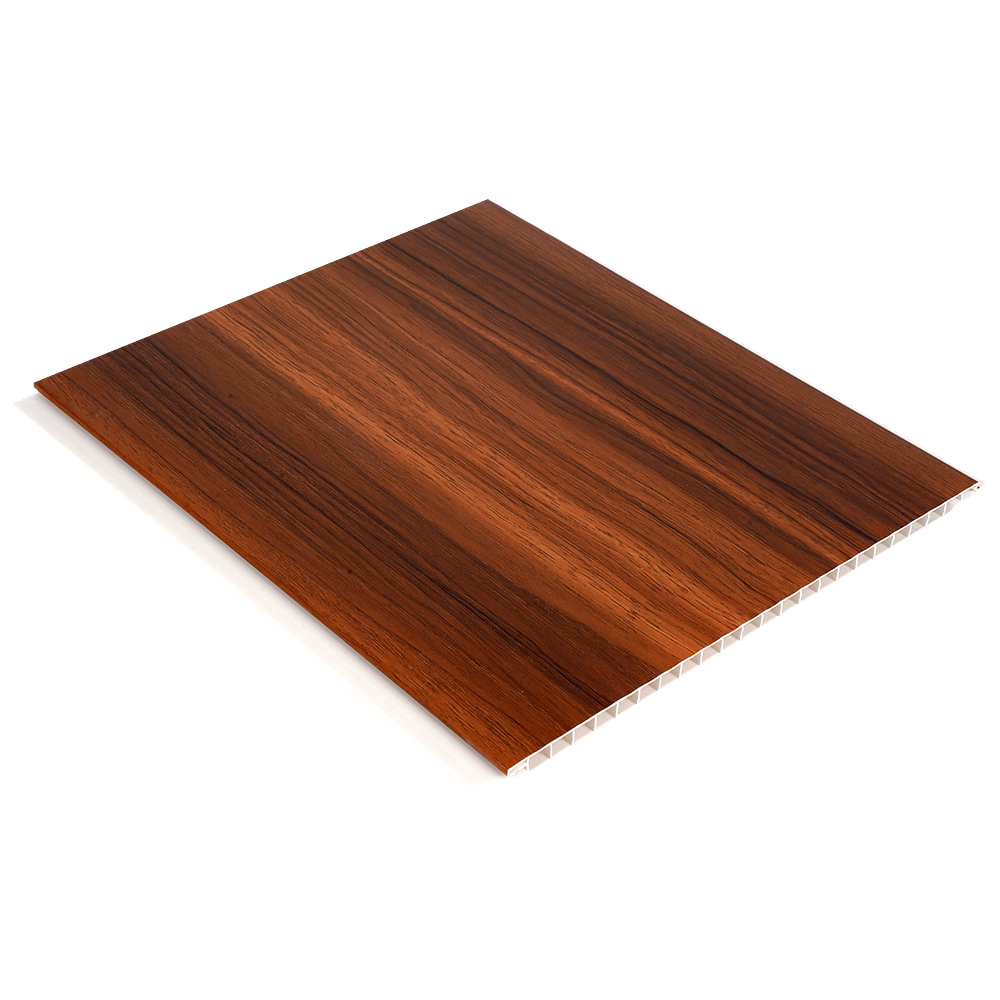

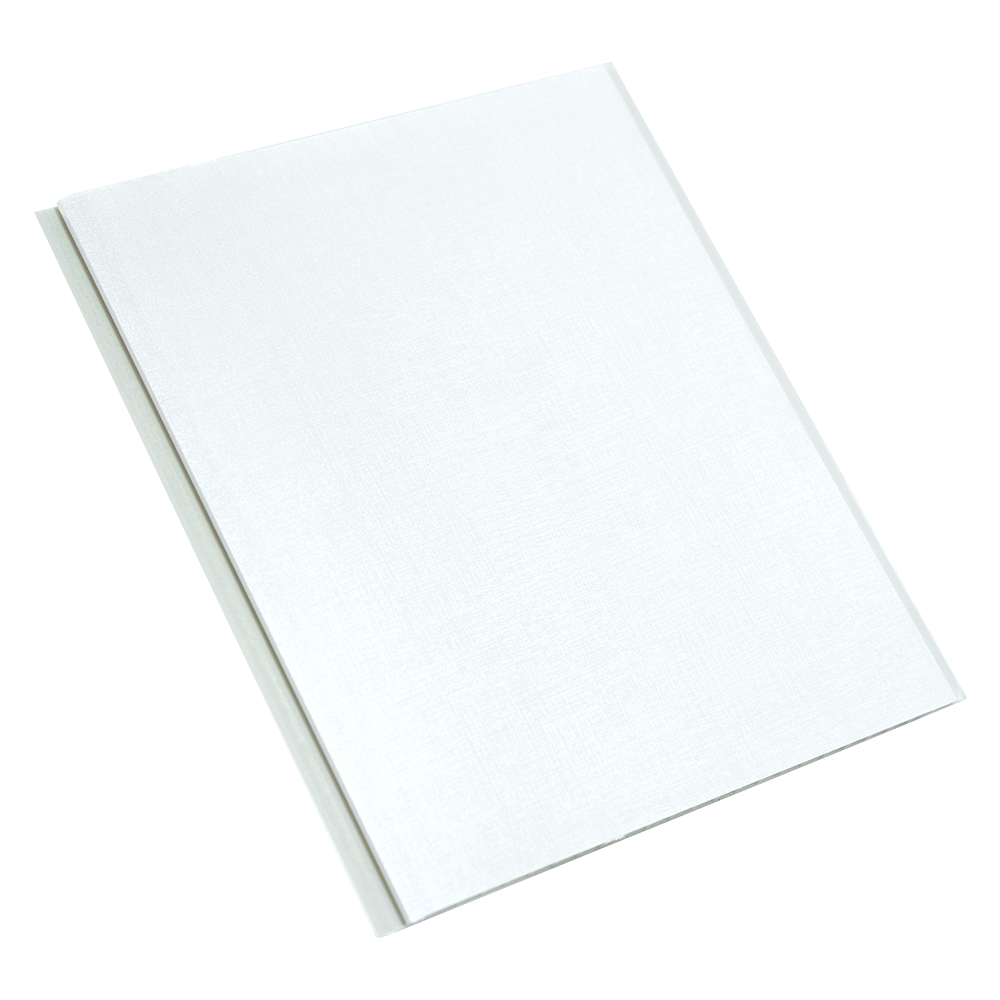

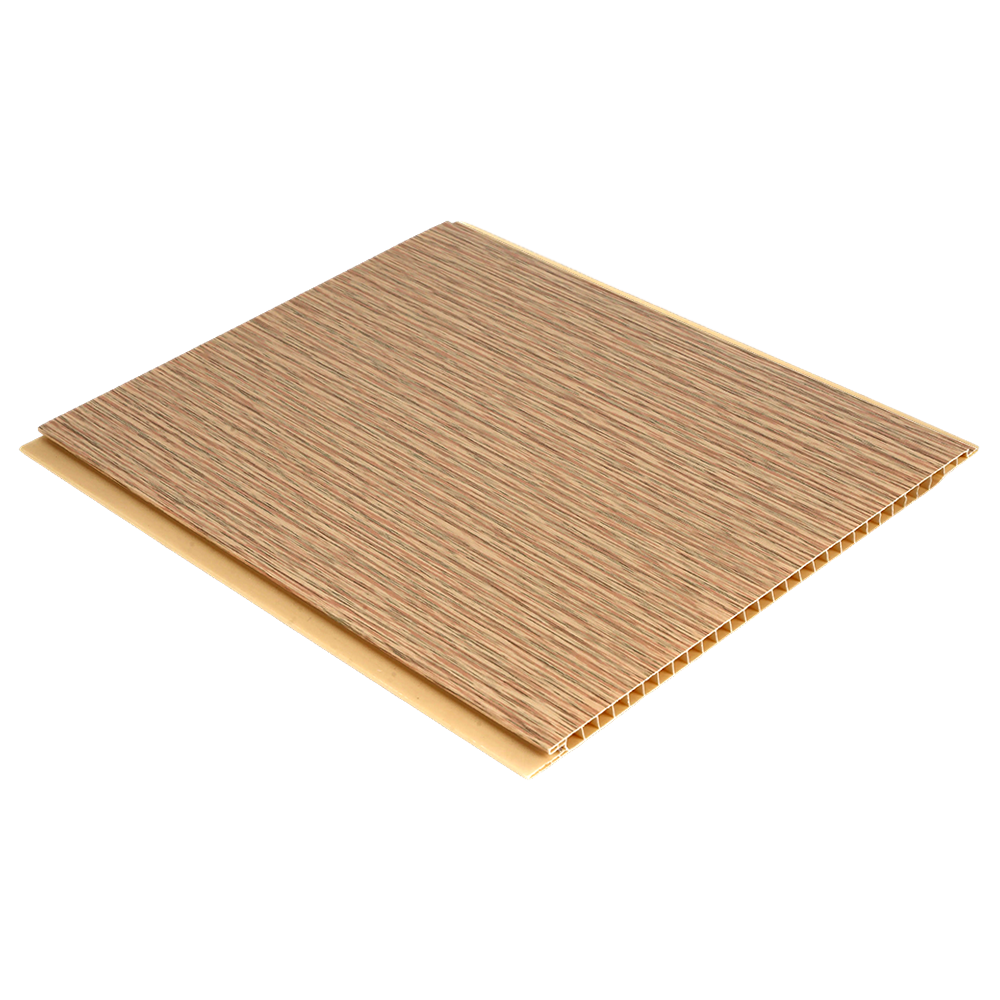

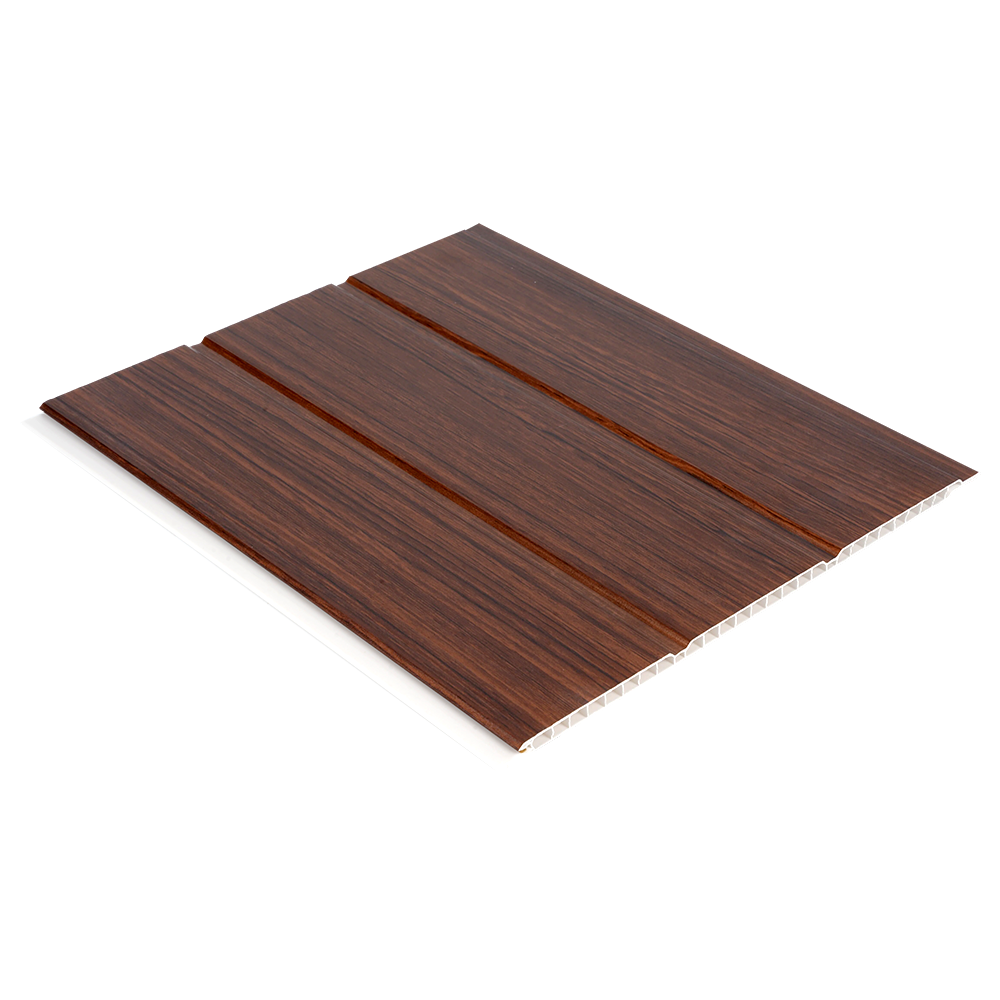

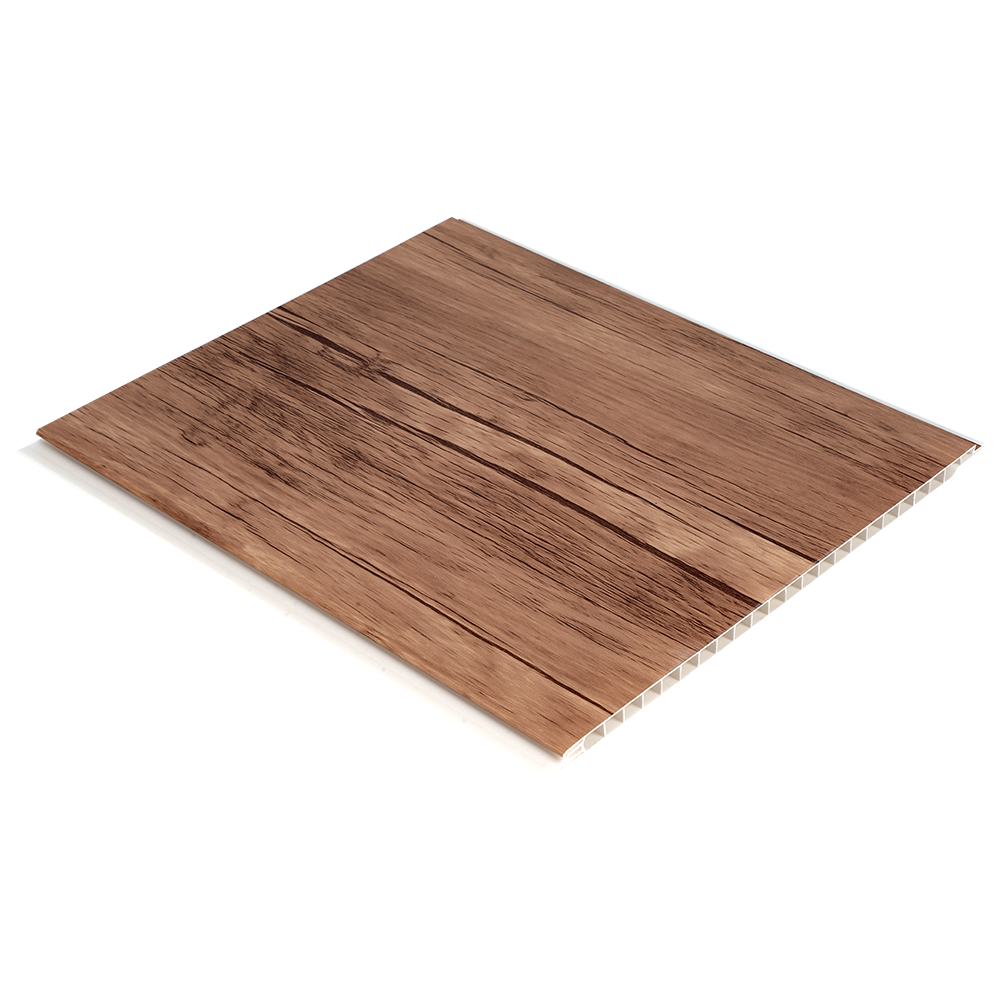

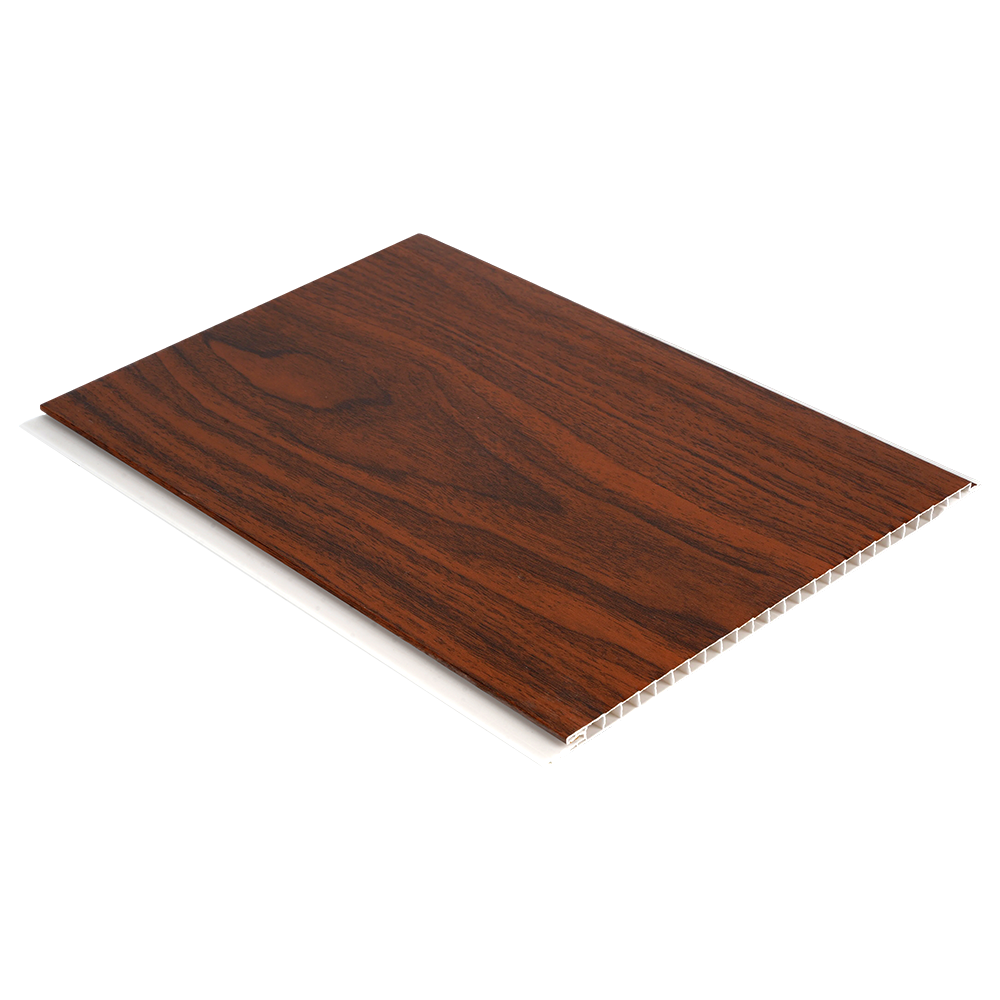

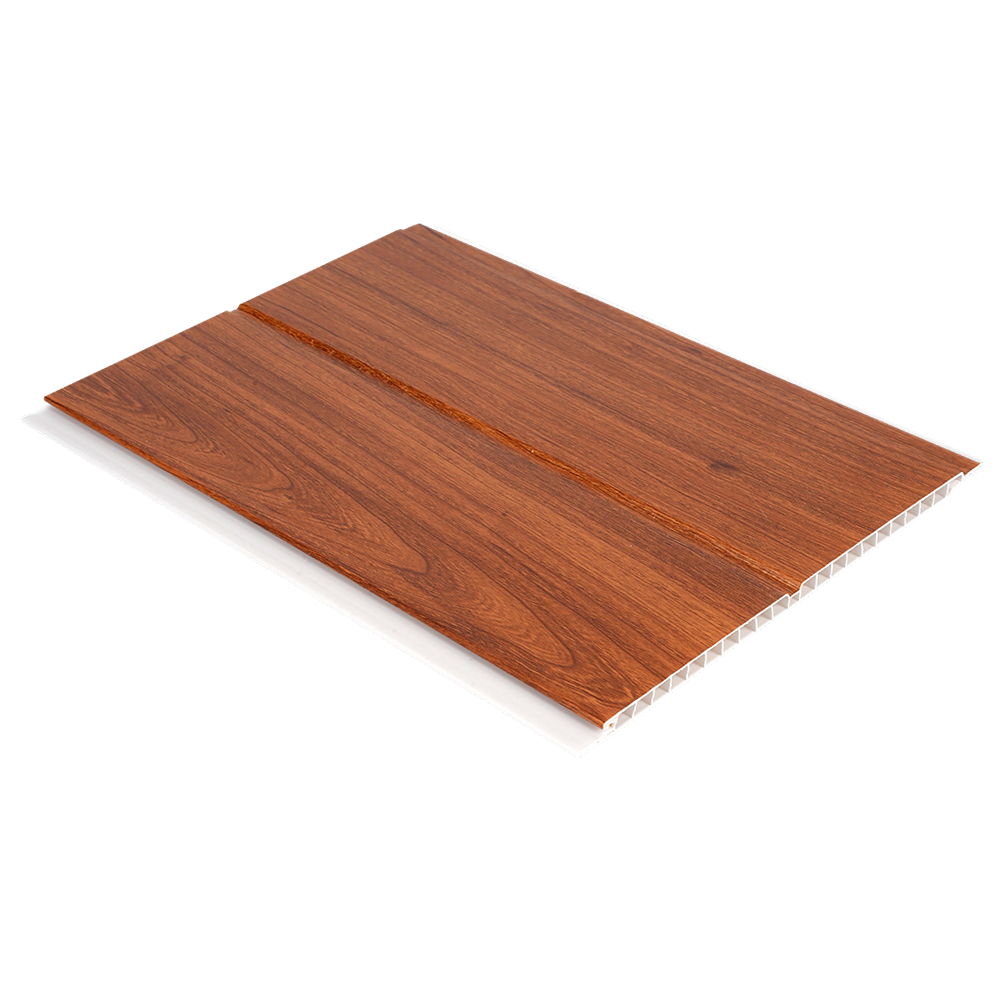

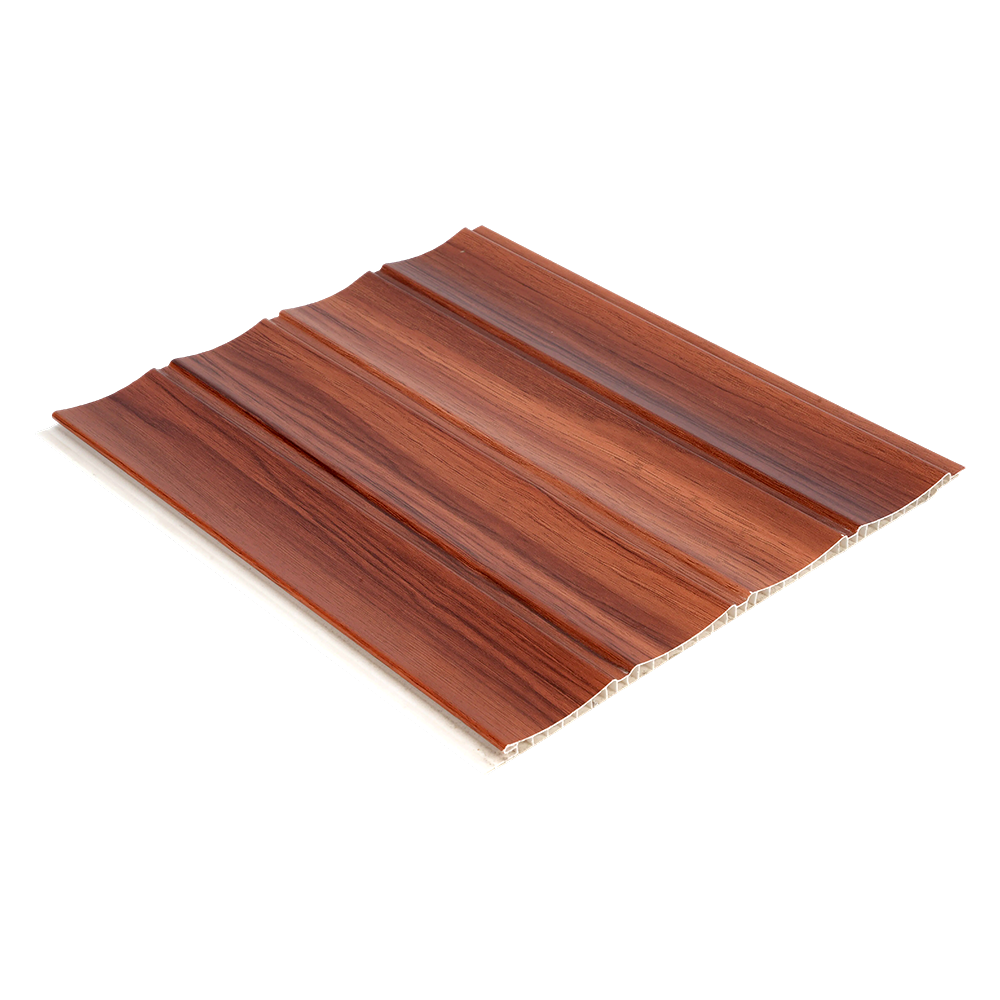

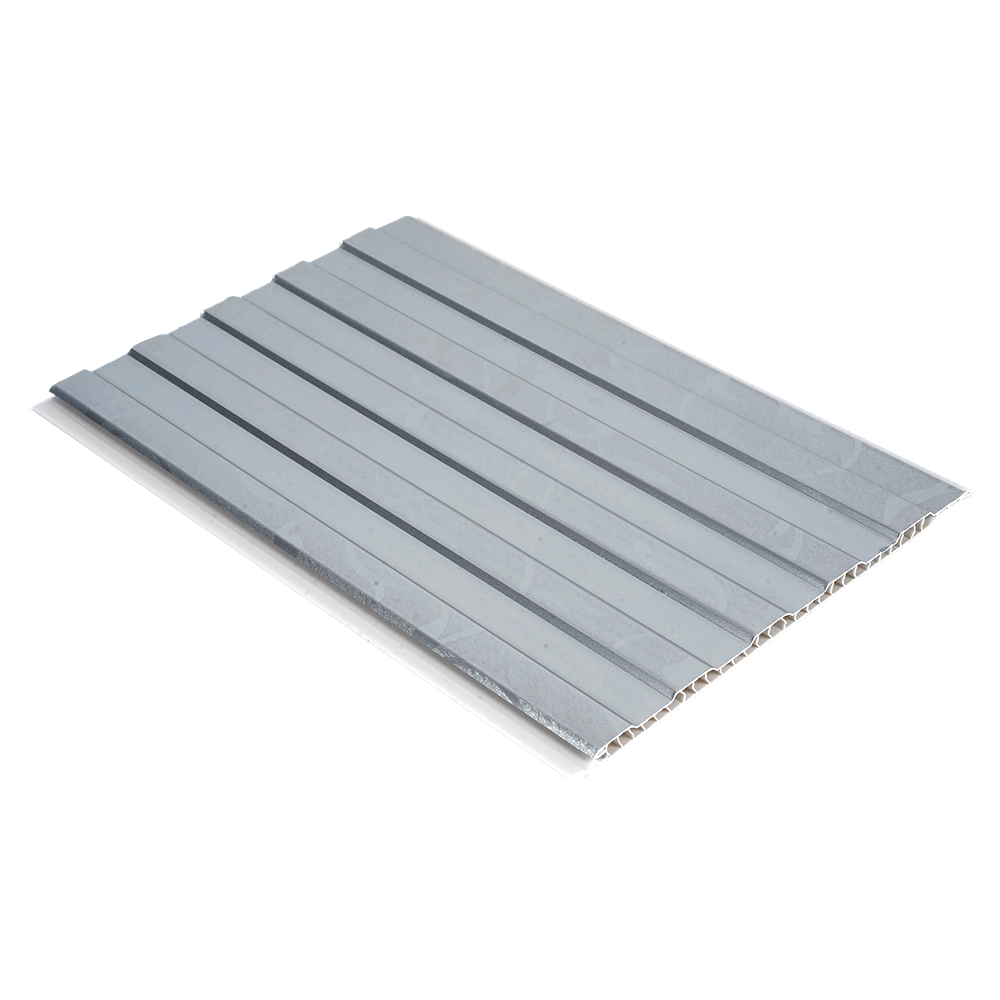

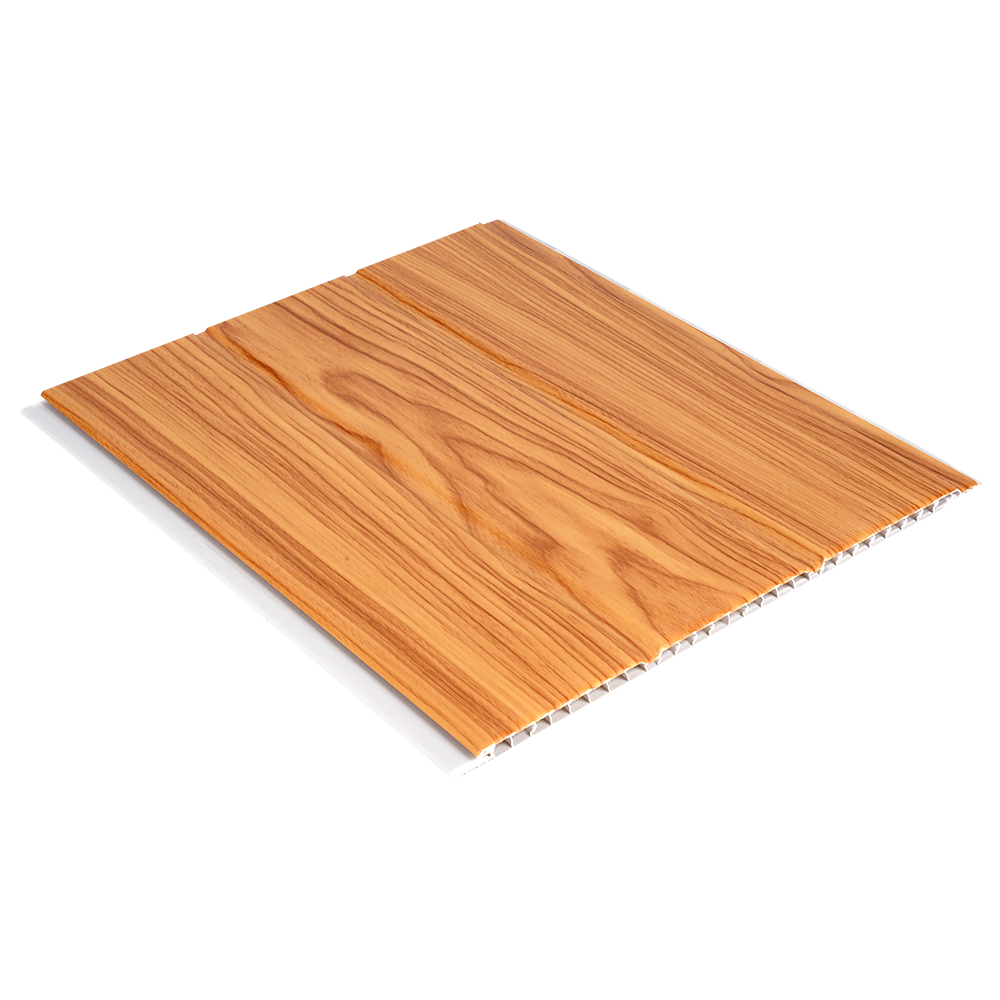

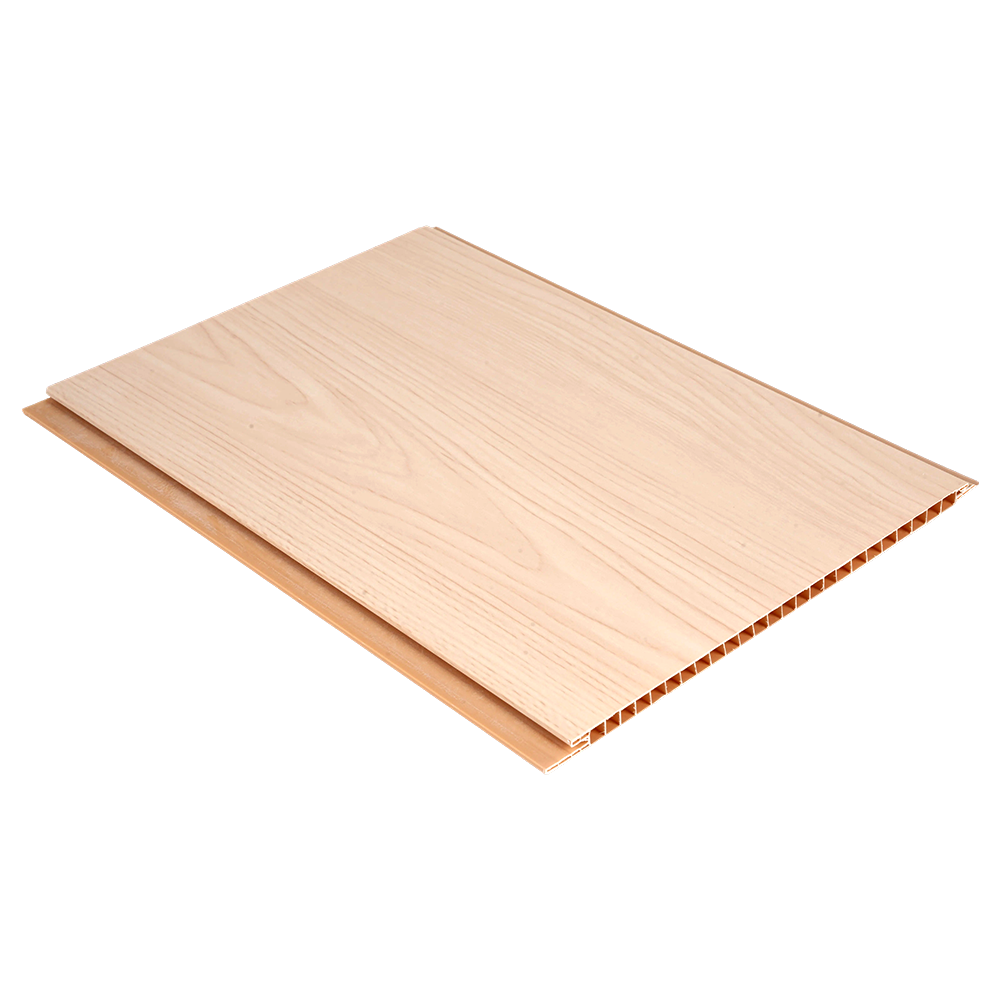

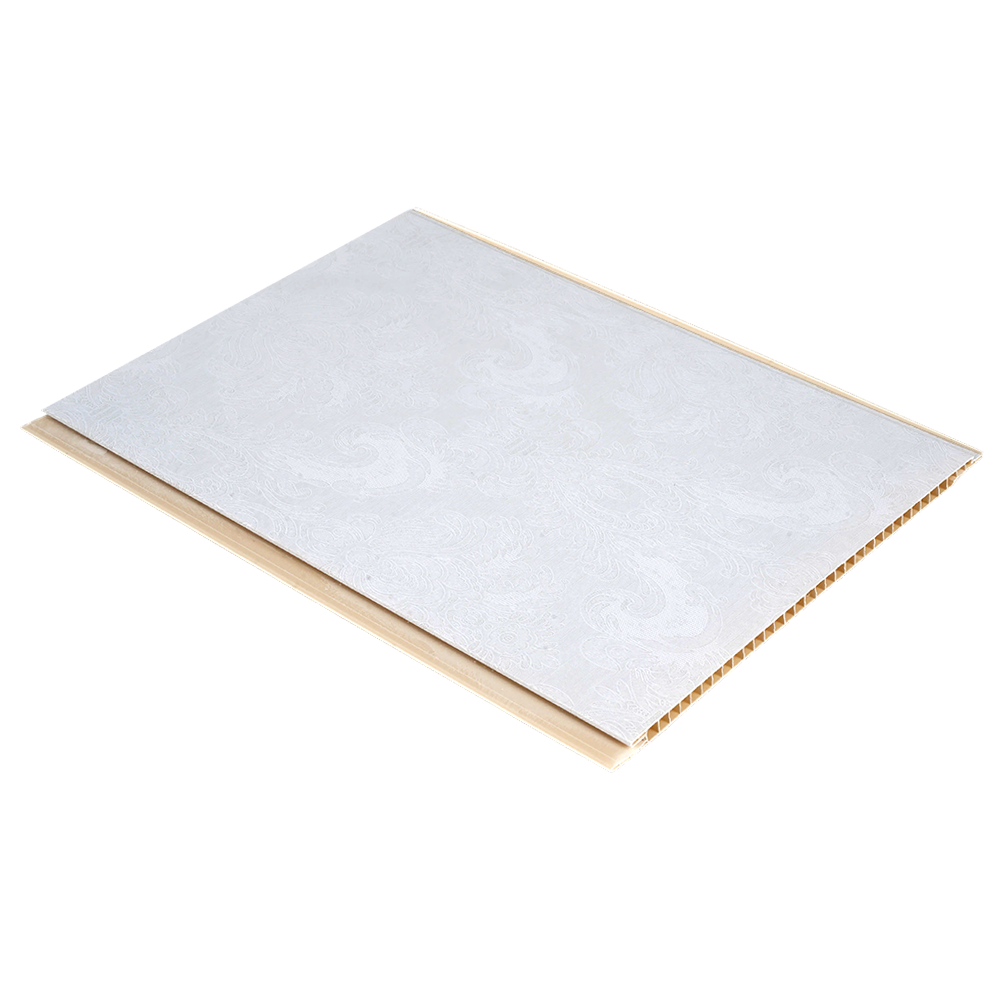

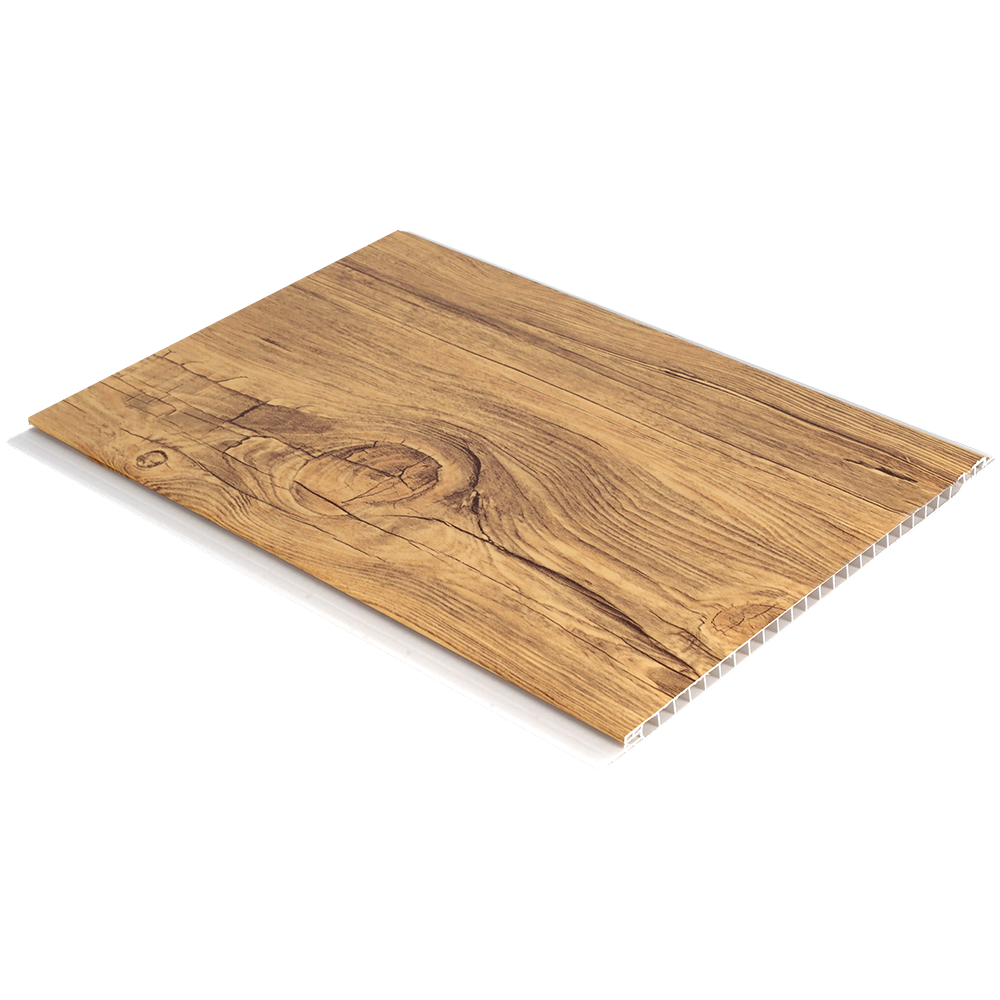

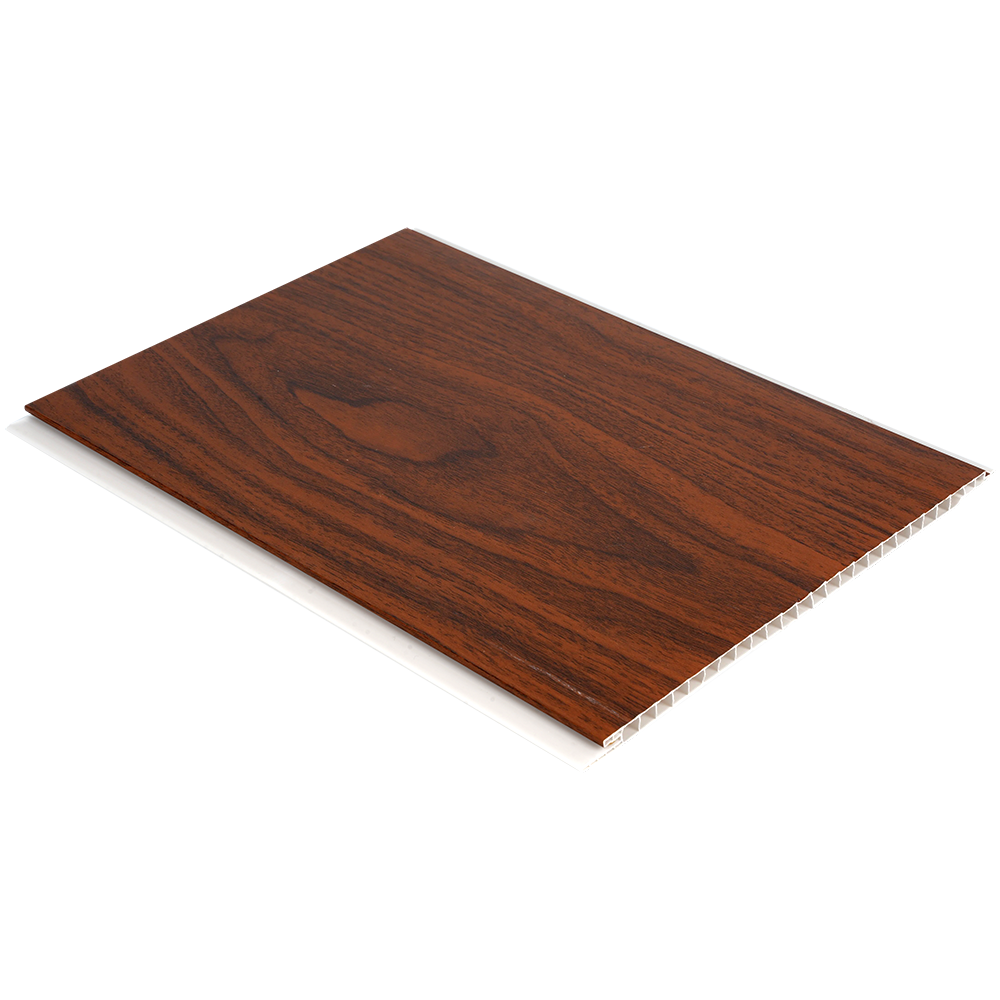

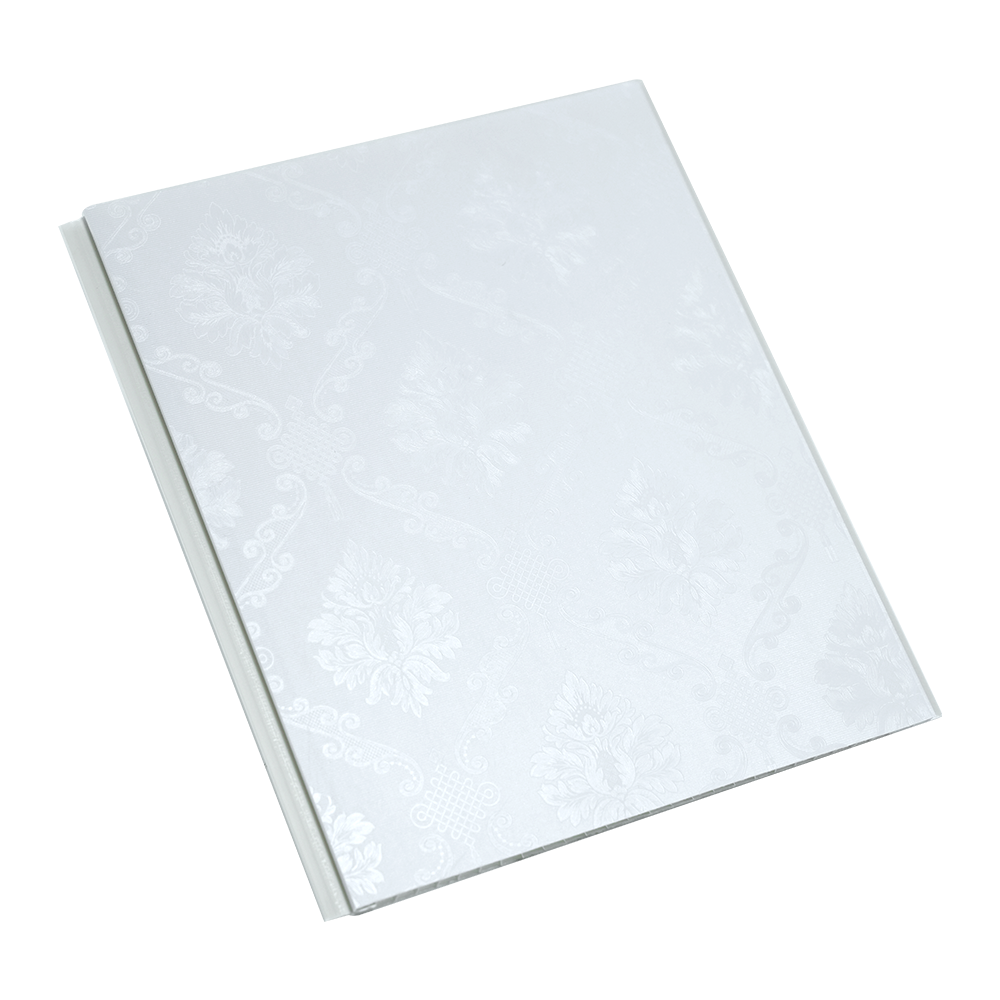

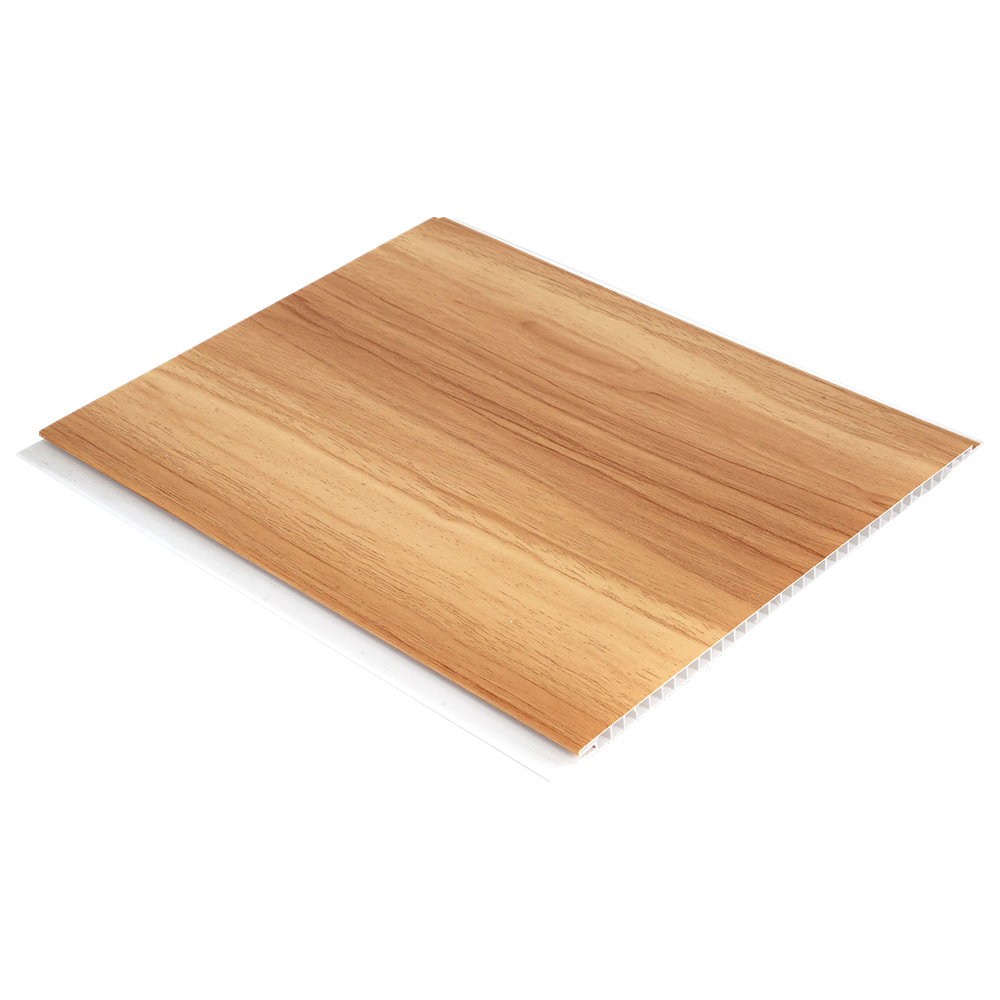

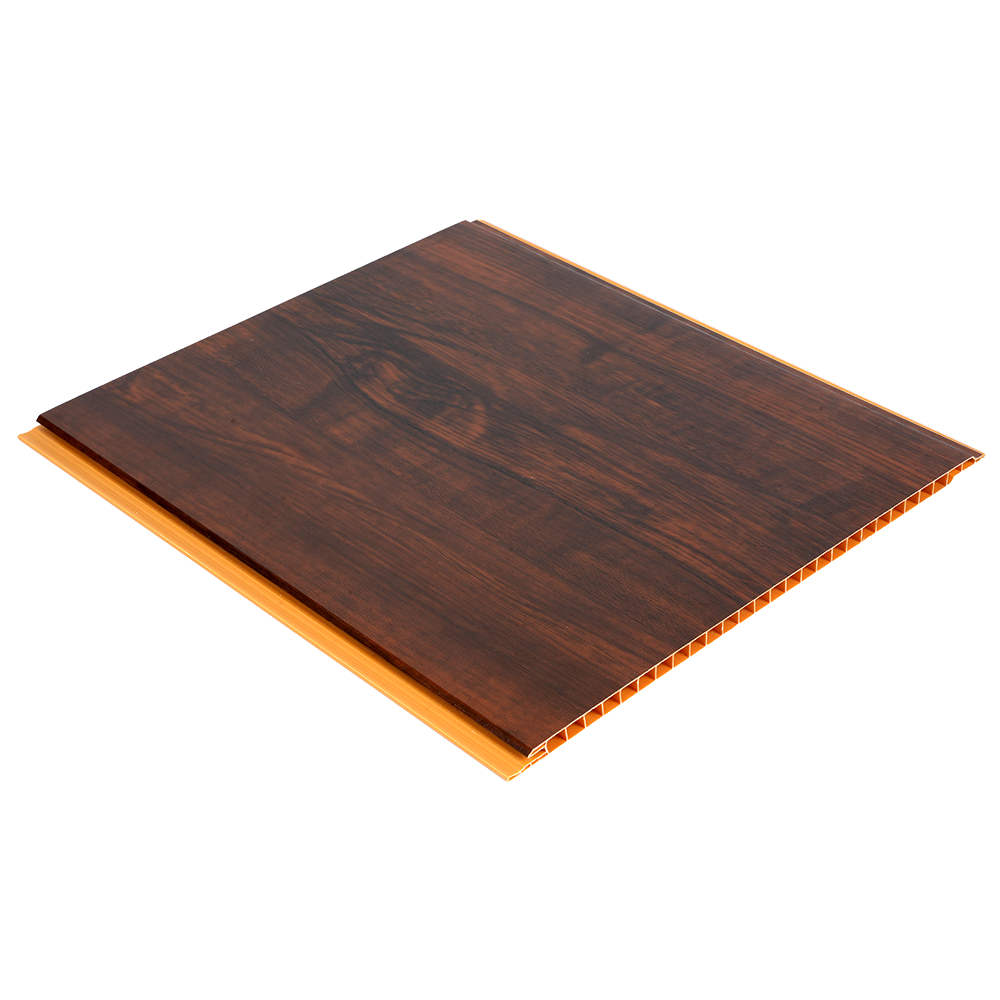

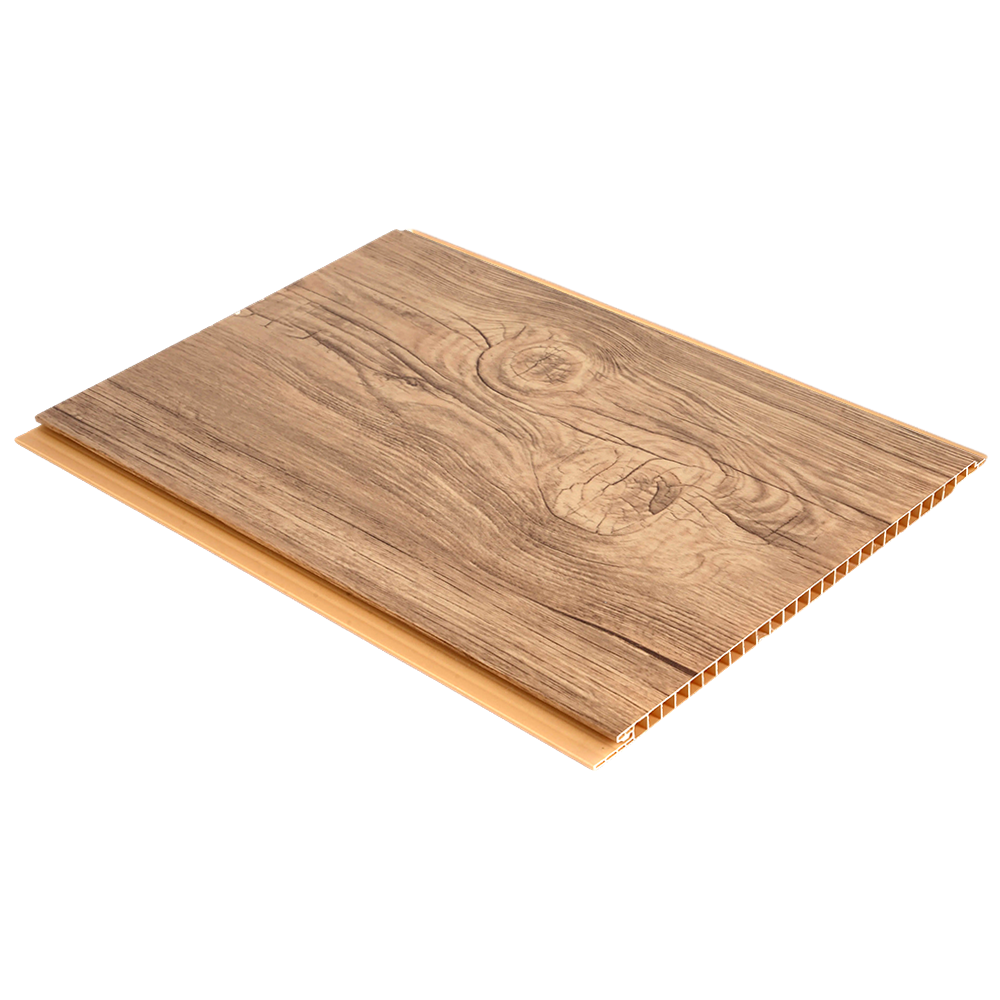

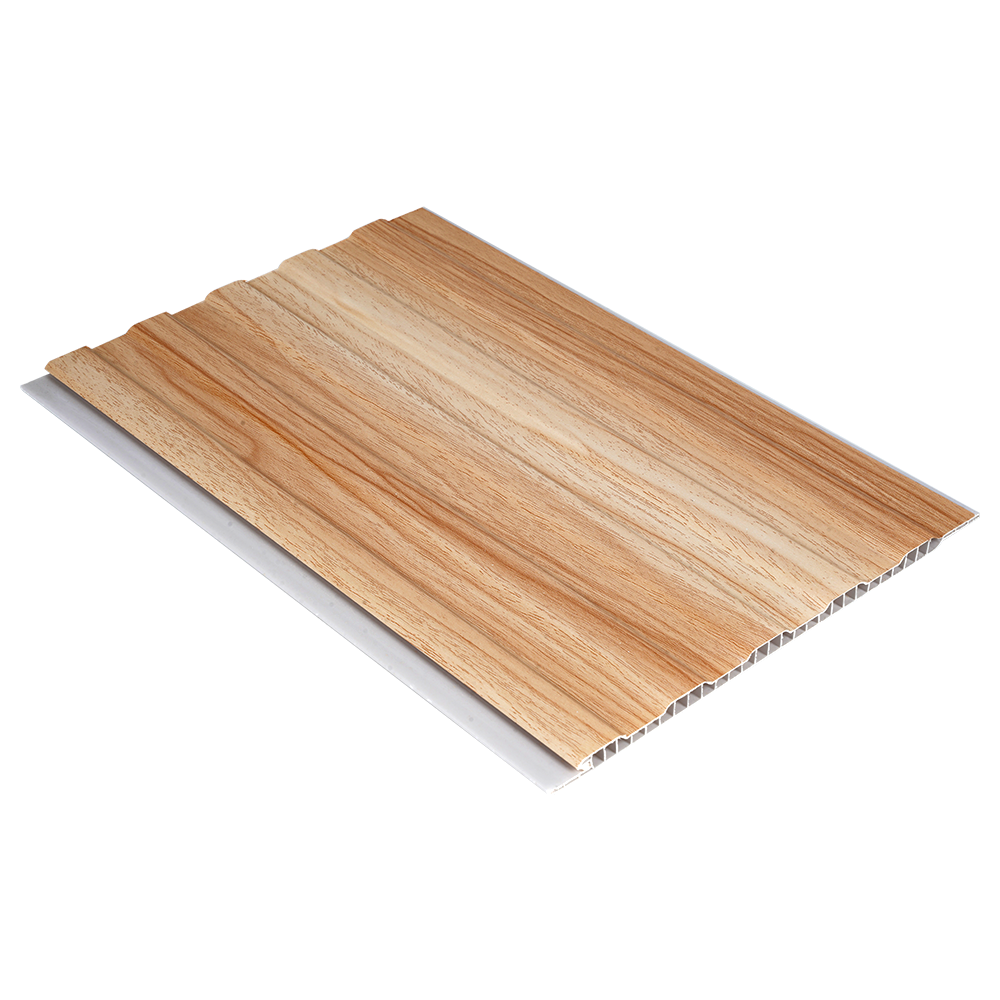

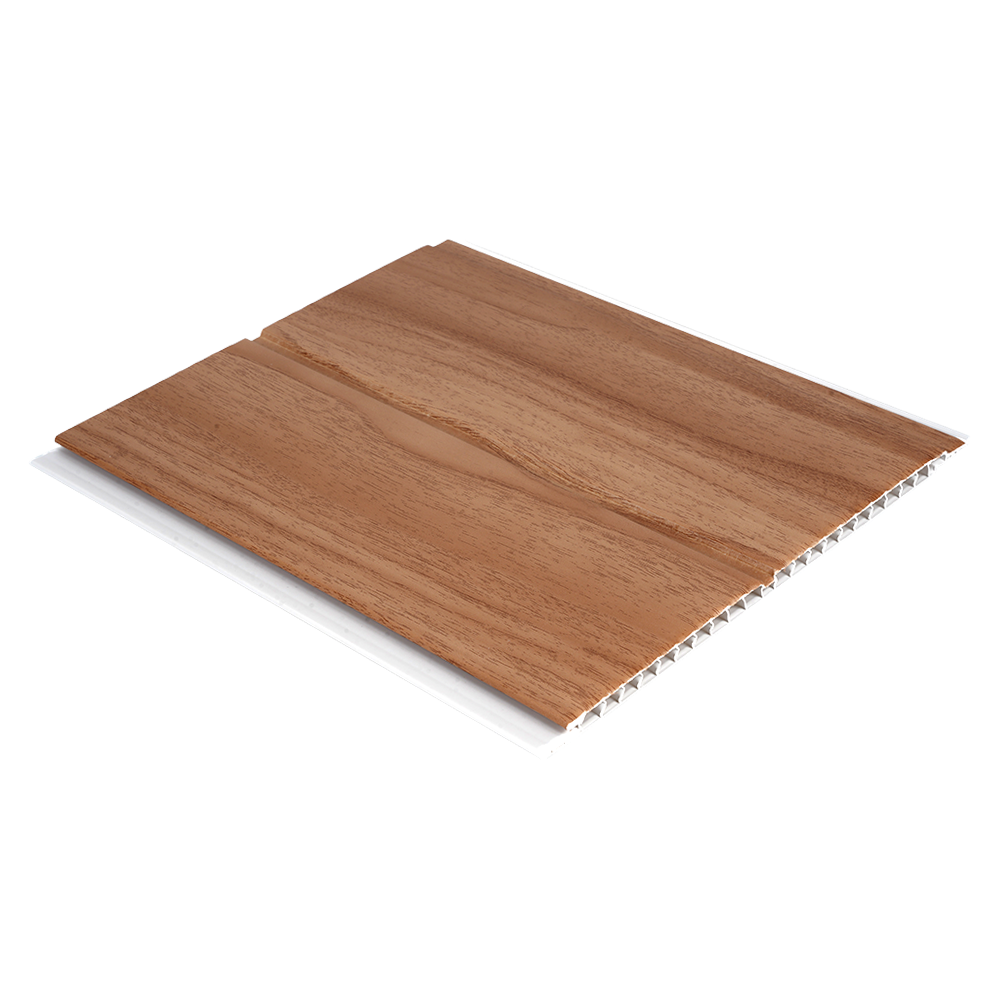

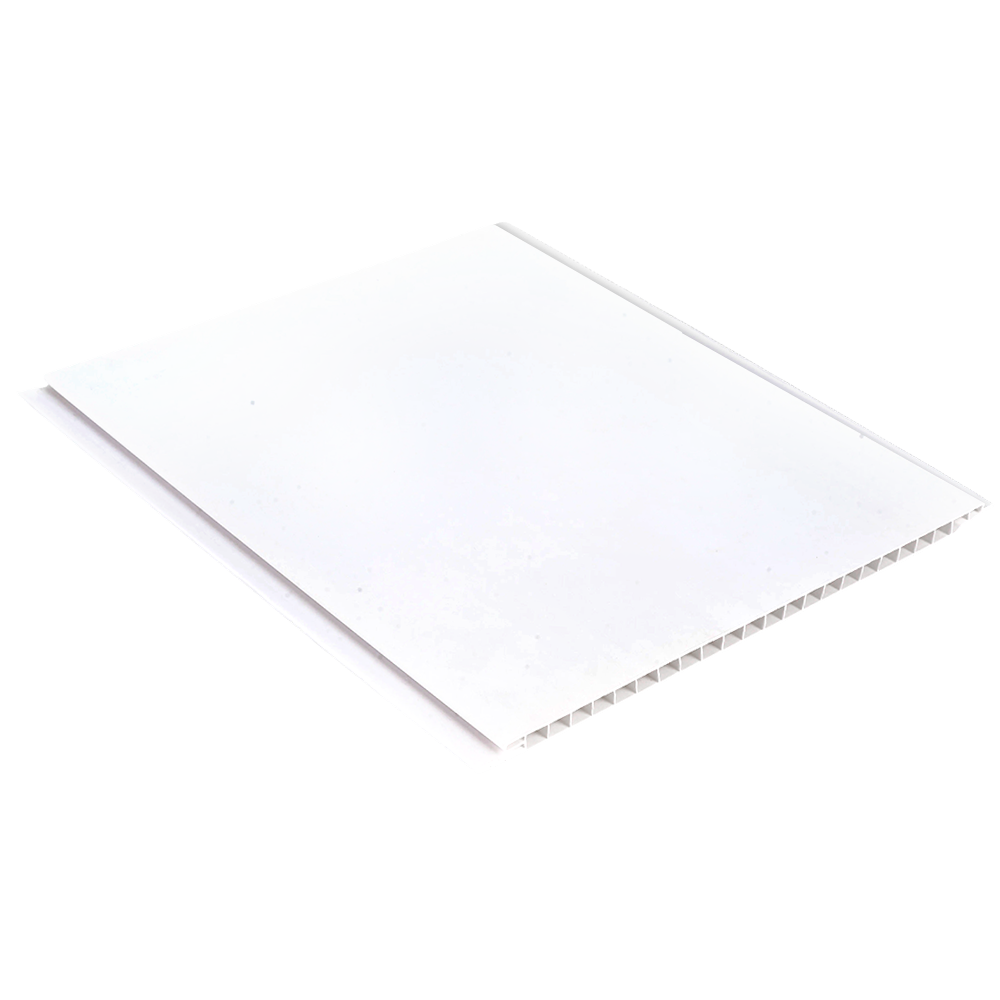

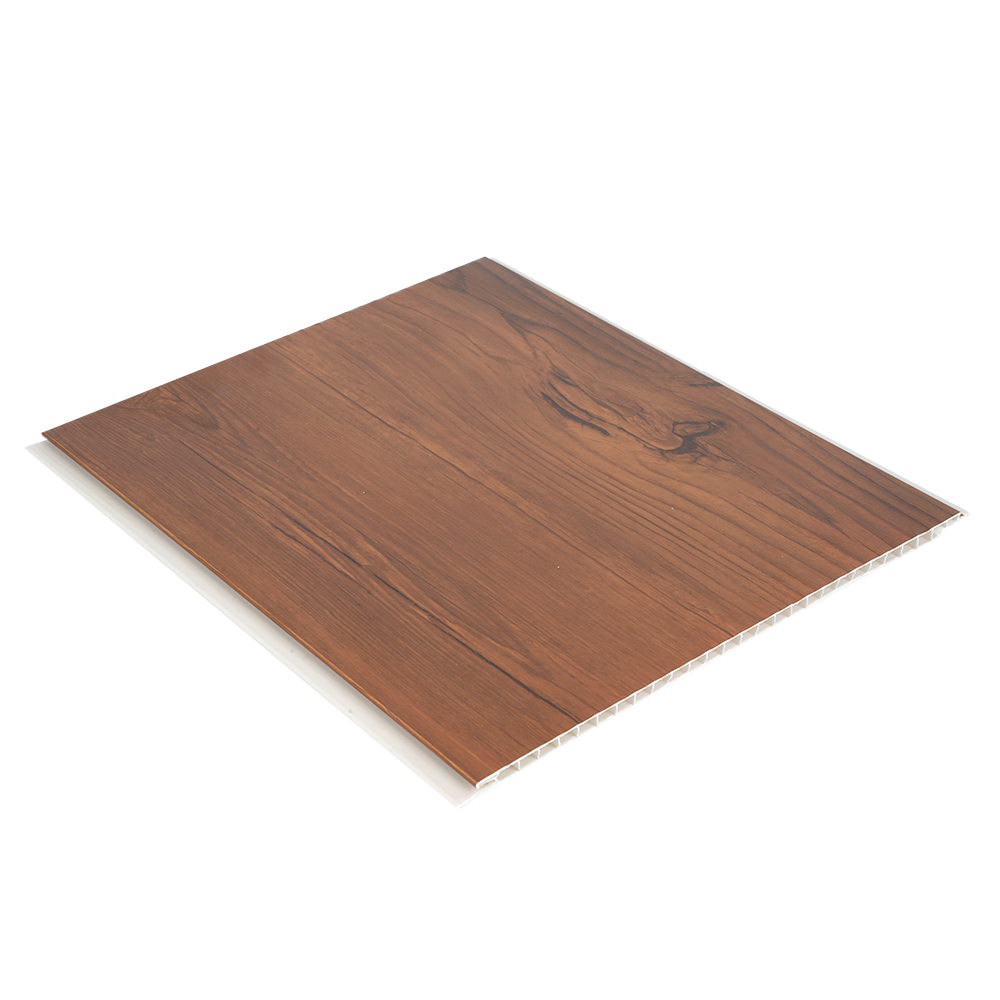

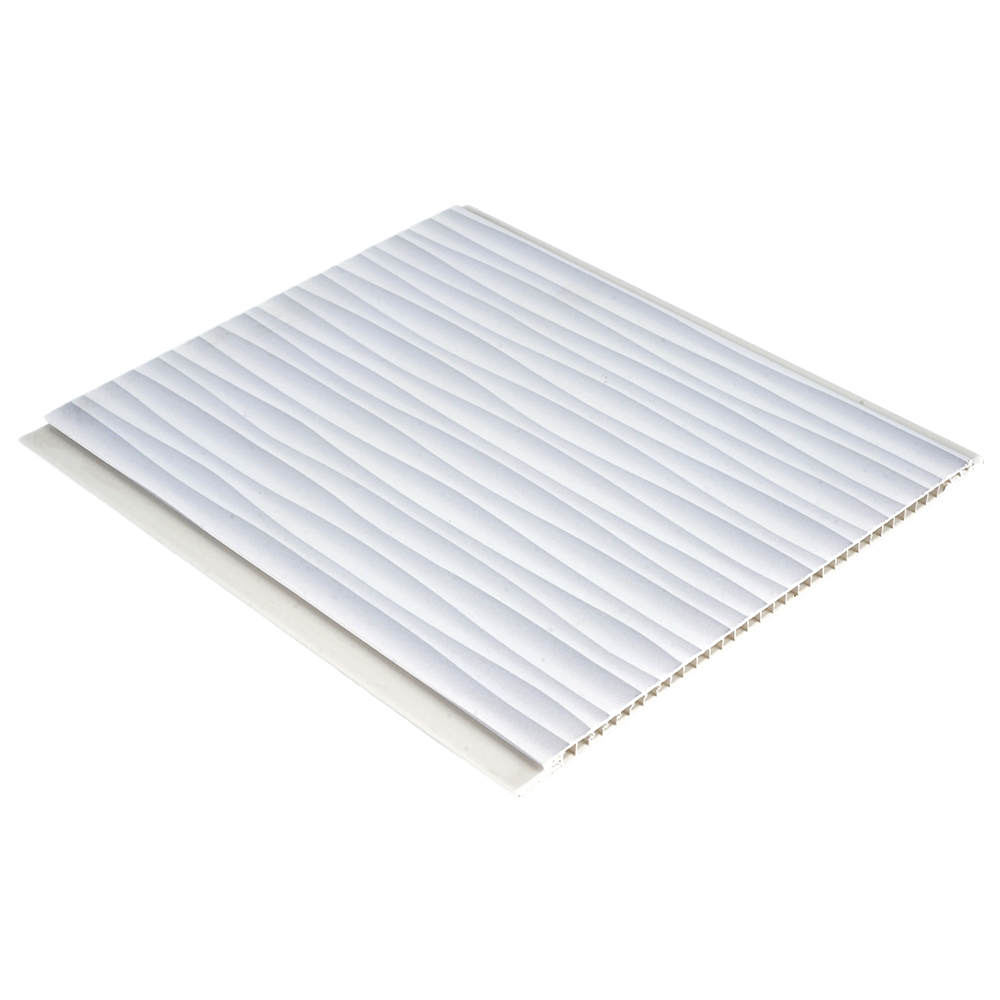

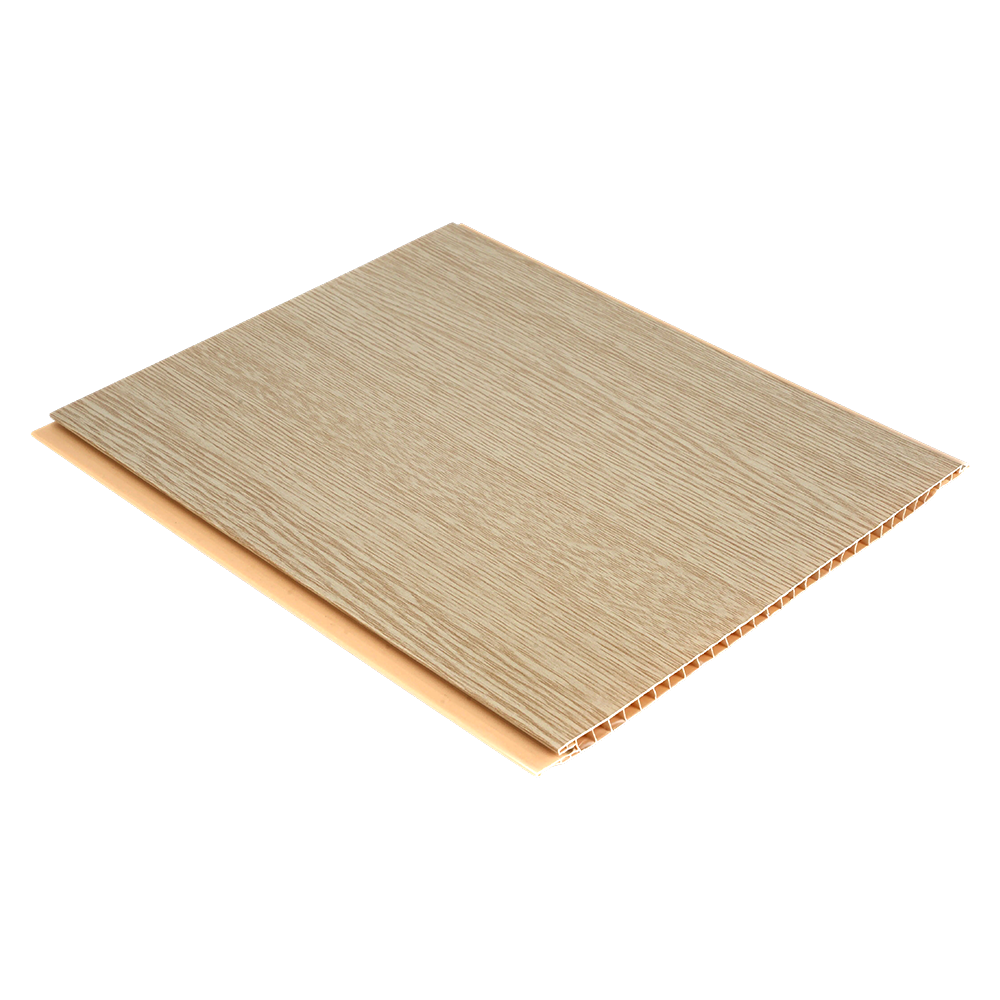

Laminated Panels
Process Principle: A pre-fabricated, thickened PVC decorative film—featuring inherent textures, patterns, and a wear-resistant protective layer—is thermally bonded to the PVC substrate using hot-melt adhesive. The film and substrate fuse into a single, integrated unit, representing a high-end manufacturing process that offers the most balanced performance characteristics.
| Thickness available | 5 / 6 / 7 mm | 7. 5 / 8 / 9 mm | 9. 5 / 10 mm |
| Width scope | 200 / 250 / 300 mm | 200 / 250 / 300 mm | 200 / 250 / 300 mm |
| Length |
2950 / 5800 / 5950 mm |
2950 / 5800 / 5950 mm |
2950 / 5800 / 5950 mm |
| Weight | 1.6-3.0 kg/sqm | 1.6-3.0 kg/sqm | 1.6-3.0 kg/sqm |
| Loading for 40'Hq | 7600-12800 sqm | 7600-12800 sqm | 7600-12800 sqm |
| MOQ | 1000 sqm | 1000 sqm | 1000 sqm |
| Comparison Dimension | Regular Printed Board | Thermal Transfer Board | Laminated Board |
| Market Positioning | Economy / Entry-level | Mid-range, cost-effective | High-end, premium quality |
| Appearance & Texture | Flat printing, plain texture, weak dimensionality | High-definition flat patterns, vibrant colors | 3D embossed texture, feel close to natural materials |
| Wear & Scratch Resistance | Weak; thin protective layer, easily scratched and faded | Medium; adhesion better than printed board, no high-strength wear layer | Strong; built-in wear-resistant protective layer, outstanding scratch and stain resistance |
| Weather Resistance & Anti-Yellowing | Average; prone to fading and yellowing under long-term light exposure | Good; aging resistance better than printed board | Excellent; strong UV resistance, resistant to discoloration over long-term use |
| Procurement Cost | Lowest | Medium | Highest |
| Production & Delivery Efficiency | Fastest; short lead time | Medium | Slower; more complex process |
Superior Texture and Strength: The decorative film features inherent surface textures, offering a visual and tactile quality comparable to natural materials. Simultaneously, the film enhances the panel's overall impact and flexural strength, resulting in reduced damage during transport and installation.
Industry-Leading Durability: The surface incorporates a high-density, wear-resistant protective layer that excels in scratch, stain, moisture, and UV resistance. It is highly resistant to yellowing, delamination, and fading, ensuring the longest service life for indoor use and resulting in low rates of customer complaints.
Broad Environmental Adaptability: The film creates a complete seal over the substrate, further enhancing water and corrosion resistance, making the panels suitable for a wide range of applications.
